| Наименование марки: | copeland |
| Номер модели: | Ж30К4е-Тфд |
| МОК: | 1пкс |
| цена: | community |
| Время доставки: | через 5-8 дней после оплаты |
| Условия оплаты: | Т/Т, западное соединение |

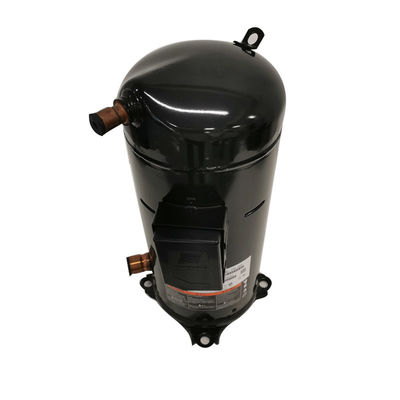

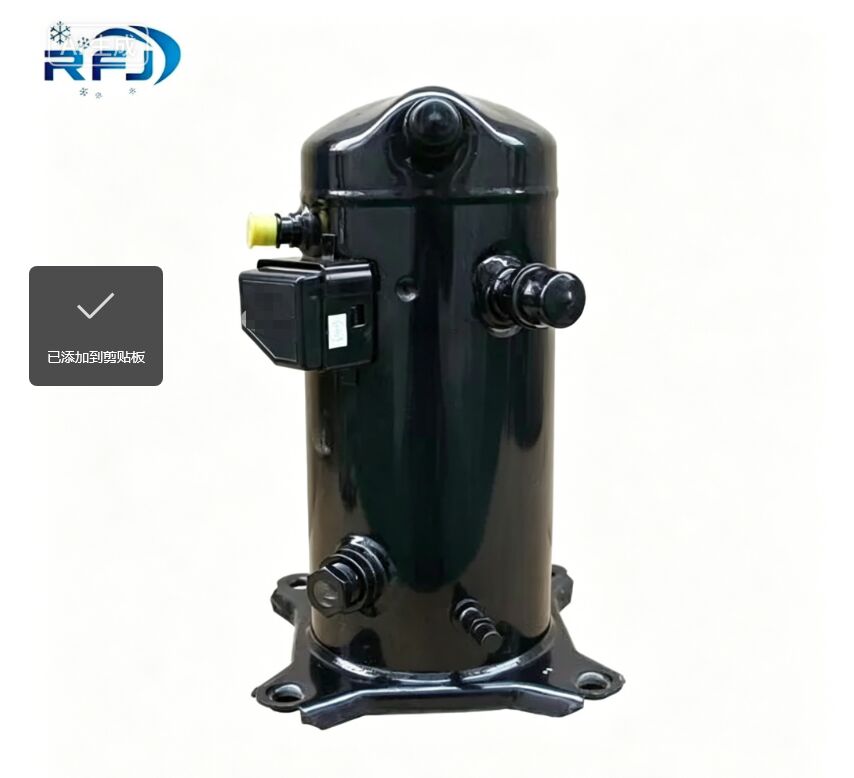

3.5HP High Efficiency Zh30K4e-Tfd - Copeland Zh - Hermetic Compressors for Air Conditioning
1, Product Description:
| Nominal engine power [KM ]: | 4 | |
| Volumetric capacity [m³ / h ]: | 11.7 | |
| Sound pressure : | 59 | |
| Weight [kg ]: | 41 | |
| Oil filling [dm³ ]: | 1.89 |
| Power supply [V / ~ / Hz ]: | 380-420V / 3 / 50Hz | |
| Short-circuit current [A ]: | 51.5 | |
| Max. current consumption [A ]: | 11 | |
| Winding resistance [Ω ]: | 3.64 |
| millimeters | all | ||
| Suction port: | 7/8 " | ||
| Discharge port: | 1/2 " |
| High quality copeland heat pump compressor | |
| brand | Copeland |
| model | ZH30K4E-TFD |
| horse power | 3.5 HP |
| refrigerant | R407C/R134a |
| COP | 3.1 |
| Capacity (KW) | 8.2 |
| Color | Black |
| Connection | Brazed |
| TYPE | Copeland heat pump compressor |
| Displacemet (m3/h) | 10.0 |
2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency
3.Drawings
ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price
3.High Efficiency
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
