cold room cooler

Name: cold room cooler
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ДСД-26.2/140
Price: 5,000.00 USD
Availability: InStock

Наименование марки:	Ruifujie
Номер модели:	ДСД-26.2/140
МОК:	1
цена:	Discussed
Время доставки:	1 месяц
Условия оплаты:	Т/Т, Вестерн Юнион

Подробная информация

Описание продукта

Подробная информация

Место происхождения:

Китай

минимальный заказ:

1 комплект

Гарантия:

1 год

Мощность вентилятора:

4x414 Вт

Соответствующая область:

140 м2

Модель:

ДСД-26.2/140

Приложение:

Холодная комната, Морозильник

Упаковка:

Упаковка деревянных шкафов

Номинальная холодопроизводительность:

26.2КВт

Упаковывая детали:

Деревянный ящик

Поставка способности:

100 шт.

Описание продукта

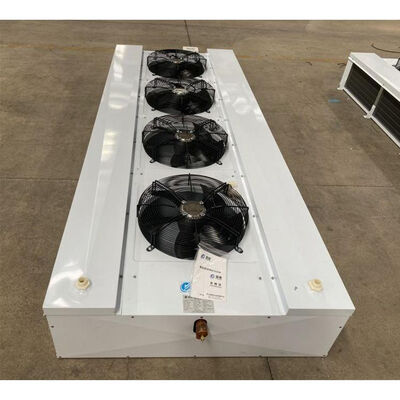

Cold Room Cooler

Product Advantages

Coverage & Air Supply Experience

This cold room cooler is designed for medium-temperature cold rooms above 8℃ with an area of around 140㎡, making it an ideal choice for large food processing raw material warehouses, fresh produce distribution sorting areas and central kitchen finished product storage zones. It is equipped with 4 external rotor motors and adopts a dual-sided air outlet structure, delivering wide-range, soft and even cold air that avoids direct strong blast on goods. This effectively reduces dry consumption of fresh ingredients and dairy products, and maintains consistent freshness across all storage positions. The low-noise operation feature also ensures it won't interfere with the daily working environment even when installed near processing areas.

Heat Exchange Efficiency & Operation Stability

Inside the unit, staggered copper coils are processed with mechanical tube expanding technology, which ensures tight bonding between copper tubes and aluminum fins for fully efficient heat exchange and stable cooling output. The 6mm wide fin spacing is optimized for medium-temperature working conditions above 8℃, which slows down frost accumulation on the fin surface effectively. This reduces the frequency of defrosting cycles, lowers temperature fluctuations inside the cold room during defrosting, and keeps the storage environment stable even with frequent door openings during cargo loading, unloading and sorting operations.

Shell Material & Engineering Adaptability

The cold room cooler features an aluminum alloy shell with a plastic-sprayed surface, which has excellent corrosion resistance and maintains a neat appearance even after long-term operation in humid cold storage environments. Its smooth surface is not easy to accumulate dust and dirt, making daily cleaning and disinfection convenient and efficient, fully meeting the hygiene management requirements of food processing and storage scenarios. It adopts a standard ceiling-mounted design that does not occupy valuable floor storage space, and its side-mounted inlet and outlet ports match most conventional cold room pipeline layouts. It is suitable for both new cold storage construction and existing warehouse renovation projects, with strong engineering adaptability.

For larger cold storage spaces of 160㎡ and above with higher cooling demands, you can refer to the DSD-29.8/160 high-capacity dual outlet cold room cooler for a better matching solution. You can also browse our full series of ceiling-mounted medium temperature air coolers for more model options.

Product Images

Technical Specifications

Model	DSD-26.2/140
Nominal Cooling Capacity	26200 W
Heat Exchange Area	140 ㎡
Tube Volume	24.2 L
Inlet & Outlet Pipe Diameter	φ25 mm / φ48 mm
Coil Defrosting Power	9600 W
Water Dish Defrosting Power	4800 W

Company Profile

Ruifujie is a professional modern refrigeration equipment manufacturer with over 20 years of in-depth experience in the global cold chain industry. Our full product portfolio covers scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, as well as supporting cold room systems, quick-freezing equipment and ice making machines. Our products are widely exported to the United States, the United Arab Emirates and Saudi Arabia. Backed by strong technical strength, strict quality control and competitive pricing, we have established long-term stable cooperative partnerships with buyers across the globe and gained consistent positive feedback from overseas customers.

Packaging and Shipping

Frequently Asked Questions

Is this cold room cooler sufficient for a 140㎡ medium-temperature food storage warehouse?

Yes. The DSD-26.2/140 model is designed for around 140㎡ cold storage with temperature above 8℃. Its 4-fan dual outlet structure can cover the whole warehouse evenly, which is very suitable for food processing raw material warehouses, fresh produce distribution centers and other medium-temperature storage scenarios.

What advantages does the 4-fan dual outlet design have over 3-fan models for large cold rooms?

The 4-fan dual outlet structure delivers larger total air volume and wider coverage, which can better eliminate temperature dead corners in large or long-span cold rooms. It also maintains softer airflow speed, avoiding local overcooling near the unit and reducing dry loss of stored goods more effectively.

Is this unit suitable for food-grade storage scenarios like bakery ingredient warehouses?

Absolutely. Its plastic-sprayed aluminum shell has a smooth surface that is not easy to accumulate dirt, and it is convenient for daily cleaning and disinfection. It fully meets the hygiene requirements of food-grade storage scenarios such as bakery raw material warehouses and dairy product storage rooms.

Can you provide technical drawings for project design and installation reference?

Yes. We can provide complete product dimension drawings, interface parameter drawings and installation instruction documents for free after you contact us, to support your project design, pipeline layout and on-site installation work.

What certification documents can you provide for international customs clearance?

We can provide CE certification and other required export documents to support your customs clearance work. You can inform us of your local certification requirements in advance, and we will confirm the supporting documents for you.

Project Bidding & Batch Procurement Support

If you are involved in cold storage project bidding, large-scale commercial cold chain supporting projects, or need batch procurement of multiple specifications of refrigeration equipment, you are welcome to contact us directly. We will arrange a dedicated technical sales team to connect with you one-on-one, provide detailed itemized quotations, complete technical qualification documents and project matching schemes, and assist you in completing the preliminary scheme demonstration and cost accounting efficiently.
